360kw Coupled Dc Wallbox Ev Chargers Dc Portable Gb/T 20234.3-2015 Swipe Scan Soc

Minimum Order Quantity : negotiation Price : negotiation
Packaging Details : container Delivery Time : 5-10 work days
Payment Terms : T/T
Place of Origin: CN Brand Name: LINCHR
Model Number: LC-DC-360kW

Detail Information

Product Name: 360kw Coupled Dc Wallbox Ev Chargers Dc Portable Gb/T 20234.3-2015 Swipe Scan Soc Power: 360kW
Standard: GB-T Voltage: AC324v~AC436V
Current: ≤685A Startup: SWIPING、SCAN
Size: 1200mm*910mm*1800mm Weight: 791kg
Efficiency: 97% Install: Stand Up
Protection Levels: IP54
High Light:

dc coupled ev charger


portable dc charger ev


gb/t 20234.3

Product Description

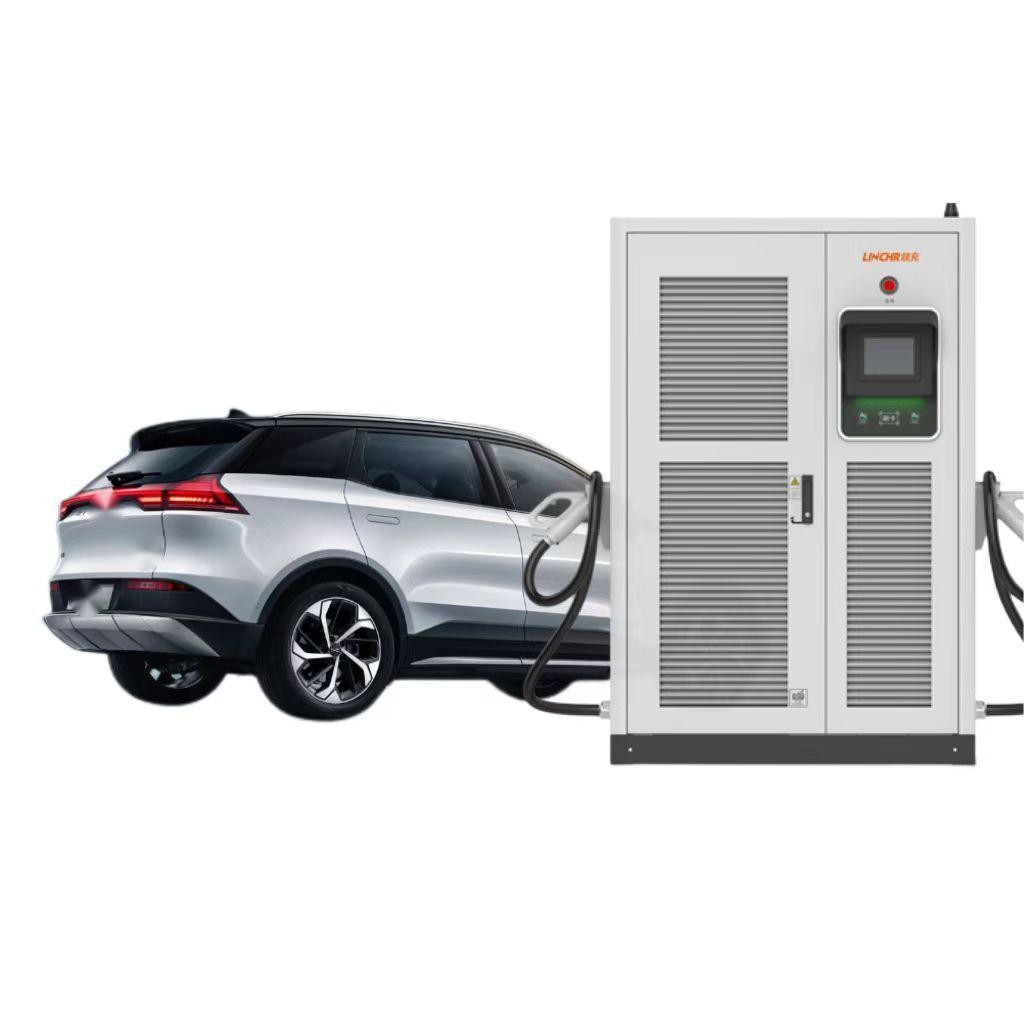

360kw Dc Ev Charger Gb/T 20234.3-2015 Double Gun With Swipe Or Scan Soc


The DC EV charger of electric vehicles, independently designed by our firm, and mostly utilized for fast charging of electric vehicles, is the 360KW outdoor high-voltage vehicle double-gun charging pile. The product has an IP54 protection rating, a waterproof and dust-proof design, and is installed outdoors. The AC power distribution unit, lightning protection unit, charger unit, monitoring unit, bottom data gathering unit, and metering unit are all integrated within the DC EV charger. The DC EV charger utilizes a modular architecture, and cables are used to link the two. It is an excellent option for outdoor DC rapid charging of electric vehicles and is characterized by ease of installation, commissioning, operation, and maintenance.


Product name DC EV Charger
Rated Power 360kW
Input voltage AC323V~AC437V
Input current ≤685A
Power factor ≥0.99
Harmonic current ≤3%
Output current single 250A,double 500A
Basic characteristics
BMS 12V/24V compatible
Work efficiency 96%
Interaction mode 7-inch LCD touch screen
Communication interface Ethernet,4G-LTE
Gun thread 8m
Charging interface 2
Ambient Temperature -30℃~+50℃
Relative humidity 5%~95% (No dewing)
Altitude ≤2000m
Site(W*D*H) 1200mm*910mm*1800mm
Protection levels IP54
Weight 760KG
Perform standard




A. To enhance user experience, the 360KW DC EV Charger offers a self-management capability that enables remote fault diagnostics and version updating.

B. Numerous start charging methods for DC EV charger system to allow customers to select; Improve client experience with terminal digital real-time display of SOC values and many typical conditions.

C. The 360KW DC EV Charger utilizes a form of module distribution to eliminate the hassle of receiving, storing, and installation from clients in batches;

D.charging pile operation sun shade screen design, which can enhance scanning identification accuracy, solve for two or more objects security design, and effectively address the issue of screen display not being clear in direct sunlight.
